PRODUCTS :

ANCHORS

Refractory fibre & anchor systems are manufactured for all types of monolithic, ceramic fibre and brick refractory linings confirming that the exact grade of material, dimensions, spacing patterns and welding methods are selected for an anchorage system which is very necessary for retaining the refractory material and ensures the lining performance

Fixing

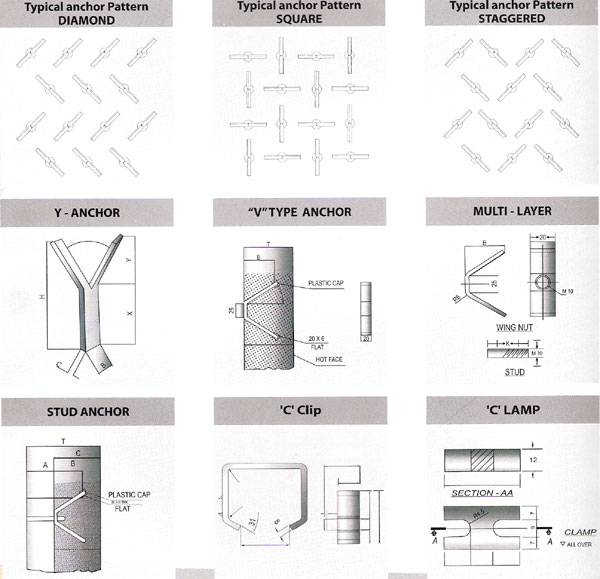

Generally refractory anchors to be 66% to 75% of the lining depth however the anchors should not extend closer than 25 mm to the lining surface. Anchor spacing depends on the type of material used, the operating conditions and the physical characteristics of the unit being lined. Generally the more severe the operating conditions the closer the anchors should be spaced and spacing should also alter according to the material density.

Anchors alloy	Hot face temperature
Mild Steel	540°C
Stainless Steel 304	1080°C
Stainless Steel 310 or 316	1350°C

PRODUCT RANGE

We have been serving the industry's refractory needs for the past many years.
Our main products are

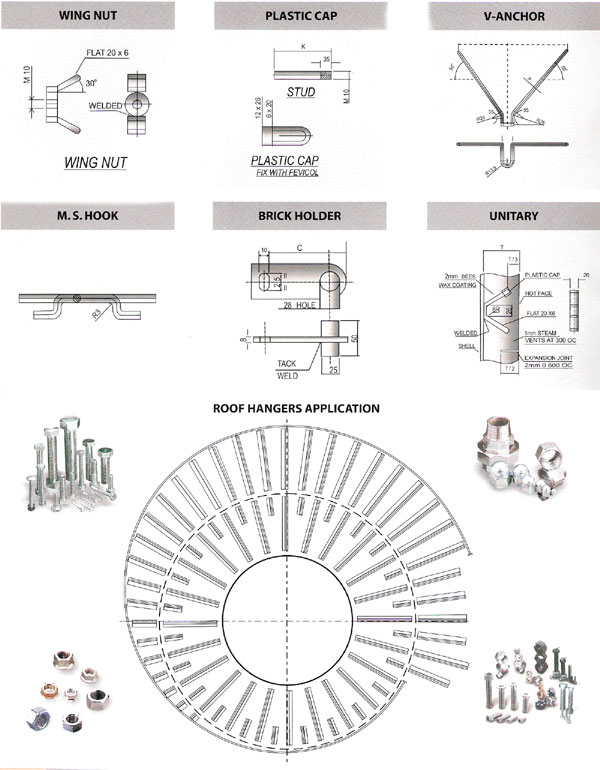

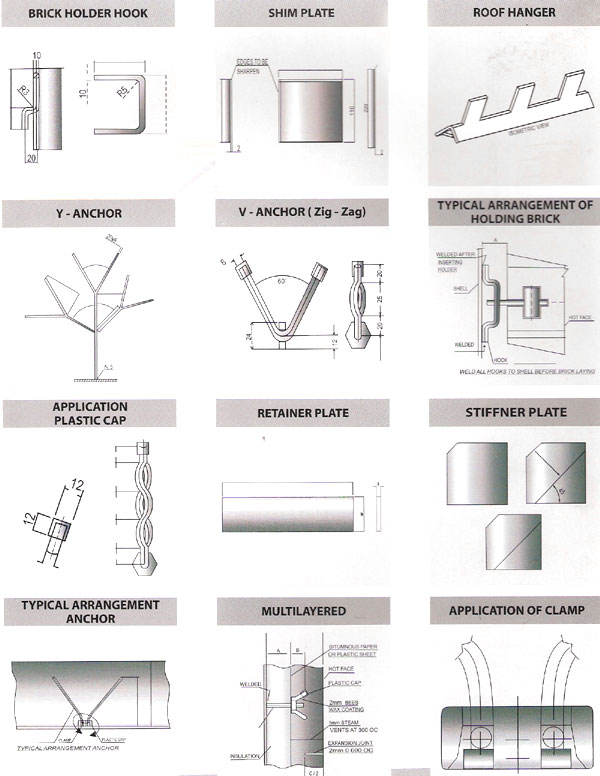

Refractory Anchors (V,Y,Zig- Zag etc.)	Brick plates,
Hangers,	S.S. fibres
C clips,	Retainer Plate
Roof Hangers	Bolts
Stiffren Plate.	Studs etc.

Refractory anchors & other materials are available in expended metal, hex steel grid and special grid. All products are available in stainless steel grades 304, 316, 310, 321 as well as carbon steel, alloy steel and other standard grades. Thickness from 3 mm to 12 mm
